| Brand Name | Low frequency medical device CL-DR-909 |
| Color | SW1 |
| Model Number | CL-DR-909-SW-1 |
| JAN | 4562134690824 |
| Classification | Electric medical device for home use |
| Classificaion of medical device | Managed care apparatus |
| General product name | Home low frequency medical device |
| Medical device certificate number | 226AKBZX00135000 |
| Power | Lithium battery（3V、CR-2032） |
| Input voltage | DC 3V |
| Maximum output voltage | 3.6mA |
| Maximum electric power | 10.8mW |
| Basic frequency | 70Hz |
| Rating output voltage | Max.52V/Pulse |
| Output pulse width | 200μsec |
| Components | Main Body×1、Gel pad set×1、 Safekeeping tray×1、Lithiumbattery（CR-2032）×1 （For testing）、Instruction manual（with guarantee） |
| Material | [Main Body]Silicon rubber、ABS resin [Gel pad] Adhesive gel [Protective film]PET[Safekeeping film]PET |
| Timer | Auto power off after 20 minutes |

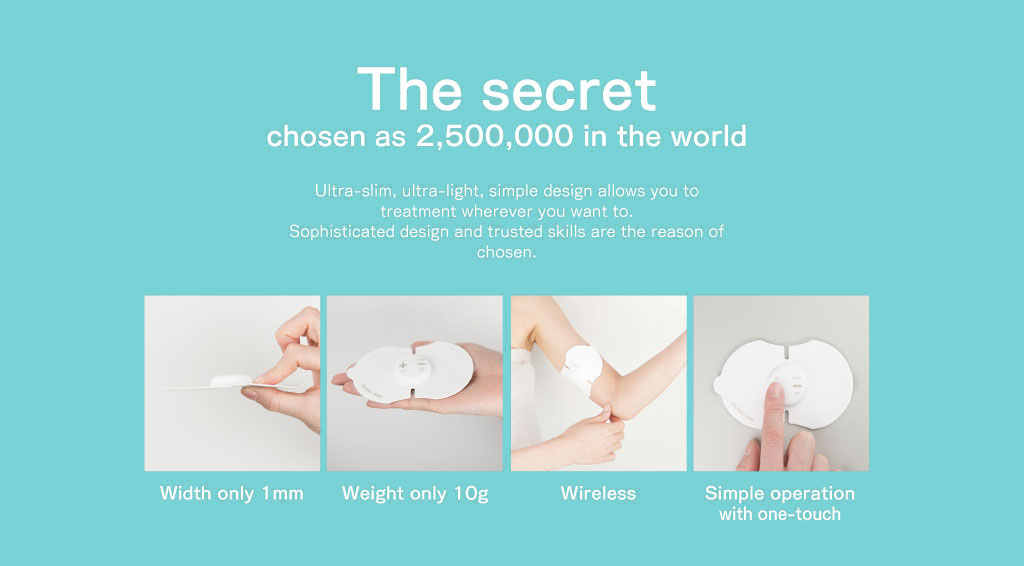

| Size | L72xW112x H10mm |
| Weight | 10g（Except battery and gel pad） |
| Brand Name | Low frequency medical device CL-DR-909 |
| Color | SW2 |
| Model Number | CL-DR-909-SW-2 |
| JAN | 4562134690909 |
| Classification | Electric medical device for home use |
| Classificaion of medical device | Managed care apparatus |
| General product name | Home low frequency medical device |
| Medical device certificate number | 226AKBZX00135000 |
| Power | Lithium battery（3V、CR-2032） |
| Input voltage | DC 3V |
| Maximum output voltage | 3.6mA |
| Maximum electric power | 10.8mW |
| Basic frequency | 70Hz |
| Rating output voltage | Max.52V/Pulse |
| Output pulse width | 200μsec |
| Components | Main Body×2、Gel pad set×2、 Safekeeping tray×1、Lithiumbattery（CR-2032）×2 （For testing）、Instruction manual（with guarantee） |
| Material | [Main Body]Silicon rubber、ABS resin [Gel pad] Adhesive gel [Protective film]PET[Safekeeping film]PET |
| Timer | Auto power off after 20 minutes |
| Size | L72xW112x H10mm |
| Weight | 10g（Except battery and gel pad） |
| General Product Name | Home medical device electrode |
| Brand Name | Refill Gel Pad CL-DR-909PAD |
| Model Number | CL-DR-909PAD |
| JAN | 4562134690923 |
| QTY | 2 pieces |
| Classification of medical device | General medical device |
| Medical equipment report number | 13B1X10140145000 |
| Size | L75 x W115 x H0.8mm |
| Material | Adhesive Gel |
